High efficiency filtration & strength - Phenolic resin fiber filter elements

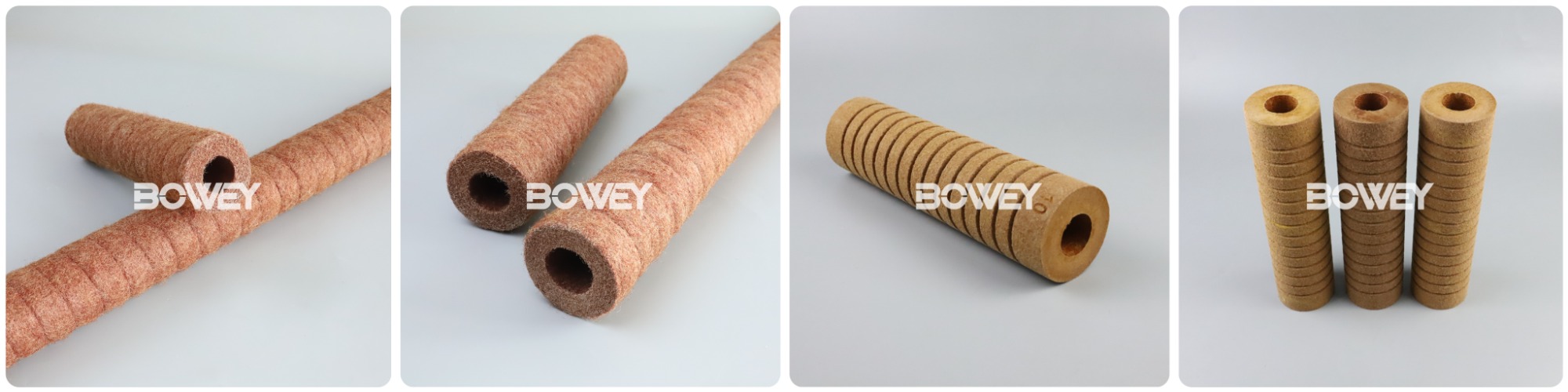

Phenolic resin fiber filter elements Introduction
The phenolic resin filter element has a unique structure, is divided into multiple stages of filtration, has retention capacity and service life. The spiral pre-filter outer cladding increases the strength of the filter element and eliminates the problem of residual debris caused by weak adhesion of ordinary resin filter elements during machining. It can also play an anti-oil and anti-stick filtering role on viscous substances and oily oils in petrochemical refining filtration, thereby increasing the service life of the filter element and reducing consumption. This product completes complex production procedures under the control of a computer. The quality control system ensures that the filtration accuracy and filtration effect of the filter element can meet the filtration accuracy required by customers.
Technical Parameters
| Filter Cartridge Length | 10″ 20″ 30″ 40″ |
| Filter Cartridge |
1µm、3µm、5µm、10µm、15µm、25µm、50µm.
75µm、100µm、125µm、150µm、200µm、250µm
|
| Outer Diameter/ OD | 65 mm ± 2 mm |
| Inner Diameter/ ID | 29 mm ± 0.5 mm |
| Highest Temperature Resistance | 145℃ |
Parameters such as length and accuracy can also be customized according to customer requirements to meet a wide range of market performance requirements!
Material Properties
Solid phenolic resin is a yellow, transparent, amorphous block-like substance, which is reddish due to the inclusion of free phenol. The average specific gravity of the entity is about 1.7. It is easily soluble in alcohol and insoluble in water. It is stable to water, weak acid and weak base solutions. Resin made by polycondensation of phenol and formaldehyde under catalyst conditions, neutralization, and washing with water. Due to the different catalysts selected, they can be divided into thermosetting and thermoplastic types. Phenolic resin has good acid resistance, mechanical properties and heat resistance, and is widely used in industries such as anti-corrosion engineering, adhesives, flame retardant materials, and grinding wheel manufacturing. Therefore, the filter element processed from phenolic resin inherits the above characteristics!
Chemical Resistance Properties
The crosslinked phenolic resin resists the decomposition of any chemical substance, such as gasoline, petroleum, alcohols, ethylene glycol, oils and various hydrocarbons. Because of its anti-chemical stability, it is suitable for making filter materials for kitchen and bathroom appliances (phenolic fiber), drinking water purification equipment (phenolic carbon fiber), bakelite tea trays and tea sets, and is widely used in cans and cans (national standard GB05009.069-2003), liquid containers and other food and beverage packaging materials.
Phenolic Fiber Introduction
Thermoplastic novolac resin is mainly used as a raw material, which is melt spun and then immersed in an aqueous solution of polyoxymethylene and hydrochloric acid for curing treatment to obtain formalin crosslinked bulk structural fibers. In order to improve fiber strength and modulus, it can be blended with 5%~10% polyamide and spun. This type of fiber is golden or yellow-brown fiber with a strength of 11.5 - 15.9 cN/dtex. It has outstanding flame resistance. The limiting oxygen index is 34. It is in instant contact with oxygen-acetylene flame at nearly 7500 ° C. It does not melt or burn. It has self-extinguishing property and can also withstand concentrated hydrochloric acid and hydrofluoric acid but has poor resistance to sulfuric acid, nitric acid and strong alkali. It is mainly used as protective clothing and flame-resistant fabrics or interior decorations. It can also be used as insulation, heat insulation and insulation, filter materials, etc. It can also be processed into low-strength, low-modulus carbon fibers, activated carbon fibers and ion exchange fibers.
Characteristics of phenolic resin fiber filter element
The external winding structure increases the surface area while reducing loose debris and pollution of
machine-made products.
Extremely long acrylic fibers increase fiber length and can resist other competitive products made of short fibers.
Damage of phenolic resin filter elements and fiber movement.
The injection of phenolic resin enhances the viscosity of the filter element that can be used for fluids up to 15,000 SSU(3200CKS)
The silicone structure ensures no medium pollution.
The flow rate reaches about 2.3T/H [each 10-inch filter element
The phenolic resin composite filter element has a unique, two-layer structure filter design to ensure maximum particulate matter removal effect and guaranteed service life in viscous fluid filtration.
Product Application
Phenolic resin fiber filter elements are widely used in: automotive topcoats, electrostatic paints, ink printing inks, cans Coatings, printing inks, coil coatings, PU coatings, embossed inks, enamel paints, newspaper inks, UV
Curing inks, conductive inks, inkjet,[varnish, resin], flat inks, various latexes, color pastes, Liquid dyes, optical films, organic solvents,[petrochemicals], chemical chemistry, engine factory cutting, Grinding and planing solution, sewage washing solution, film developer, magnetic strip, magnetic ticket, magnetic card developer filtration.(Note: The brown phenolic resin filter element is a combination of special fibers and resin. The new formula has many
advantages such as strong chemical resistance. It has wide chemical compatibility and is especially suitable for liquid filtration with high
temperature, high strength and high viscosity.)
For detailed product catalogs or customized inquiries, refer to our websites or contact our technical support teams.
